NoSQL: Data Model, What is the Graph Based Store Database (Day 7)

Graph Store NoSQL Database
Today, I am going to discuss Graph Based Store Data Model of NoSQL, which is completely different than the previous three models.

Some of the most popular Graph Based Databases are: OrientDB, Neo4j, FlockDB.



What exactly it is?

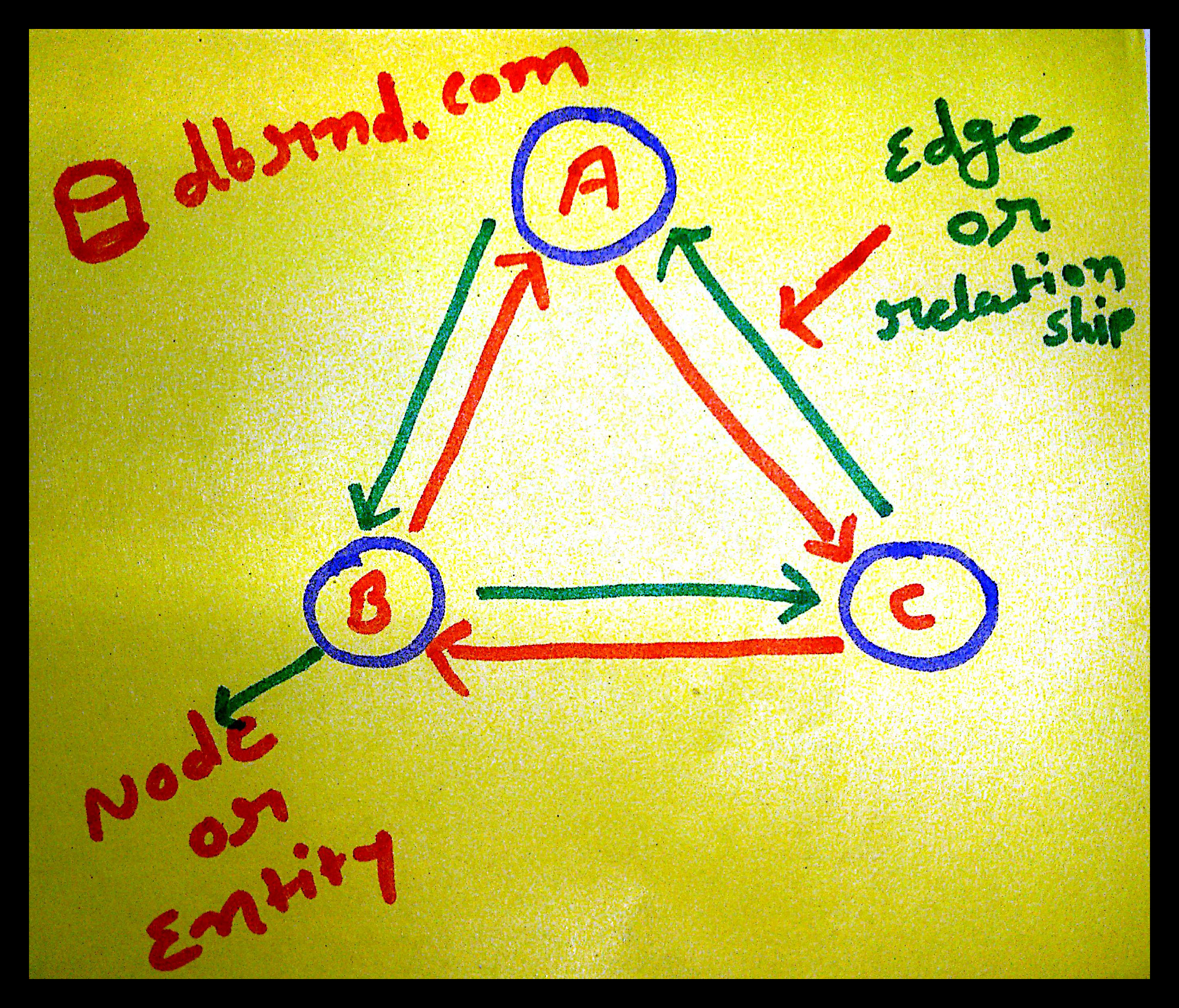

There are main two words, which are a central part of Graph Based Store Database.
1. Node or Entity.
2. Edge or Relationship.

The main idea of this model is linking and grouping related pieces of information.

This model represents the connections between two or more entities which are direct or indirect connected.

One of the best example is:
The model of Social Network like, Facebook Friend’s connections. In this model, directly or indirectly We can connect to N number of friends.
Another example of applications is: Transport Links, Map and Spatial System, Routing System, Network Topologies System.

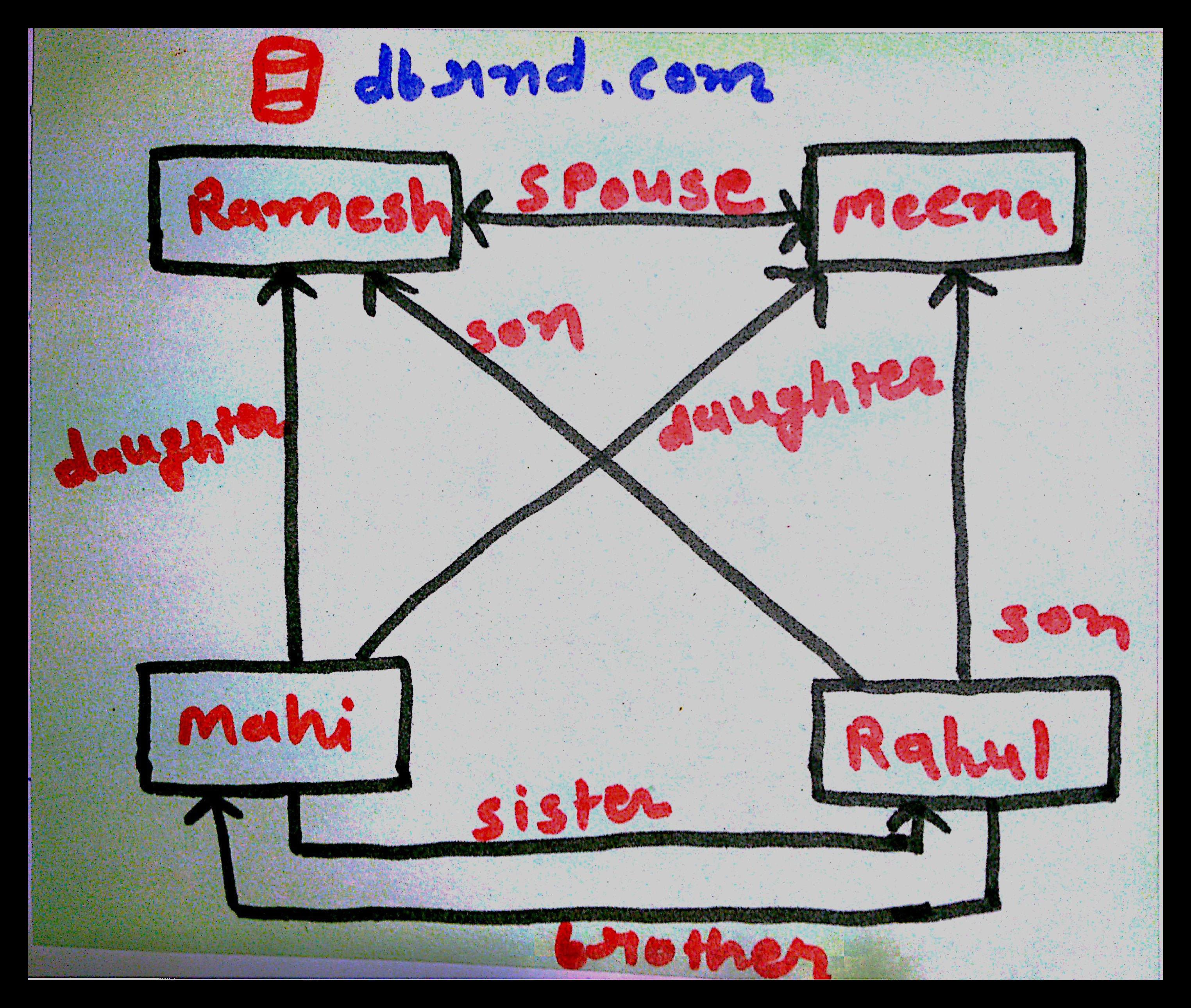

Graph Store NoSQL Example

When we are trying to store a graph structure in an RDBMS, We can store very limited and a single type of relations and adding a another relation type requires to change schema structure.

A Graph Based Store database is a schema free and we can scale up to any level by adding a different type of Entities and Relations. (Nodes and Edges)

How exactly it works?

Each node is defined by a unique identifier and each edge represents a relationship between two nodes.

Each node can have an unlimited number of relationships and each edge should be directional.

All the value is derived from the relationships and it has not only a start-node and an end-node, but it has also set of properties like: relation type, time of established, distance between two nodes and other.
We can use these properties to query the graph.

Each node can have a different type of relationship which are defined by different ways like: category, different time information, indexing, different path information.

It is very easy to adding a new relationship, changing existing nodes in the graph.

Please share your ideas and opinions about this topic with me, your contribution will add true value to this topic.
If anyone has doubts on this topic then please do let me know by leaving comments or send me an email.

If you like this post, then please share it with others.
Please follow, I will share my experience towards the success of Database Research and Development Activity.

I put up a post every day, please keep reading and learning.
Discover Yourself, Happy Blogging !
Anvesh M. Patel.
